Hi-Lo Mat Table

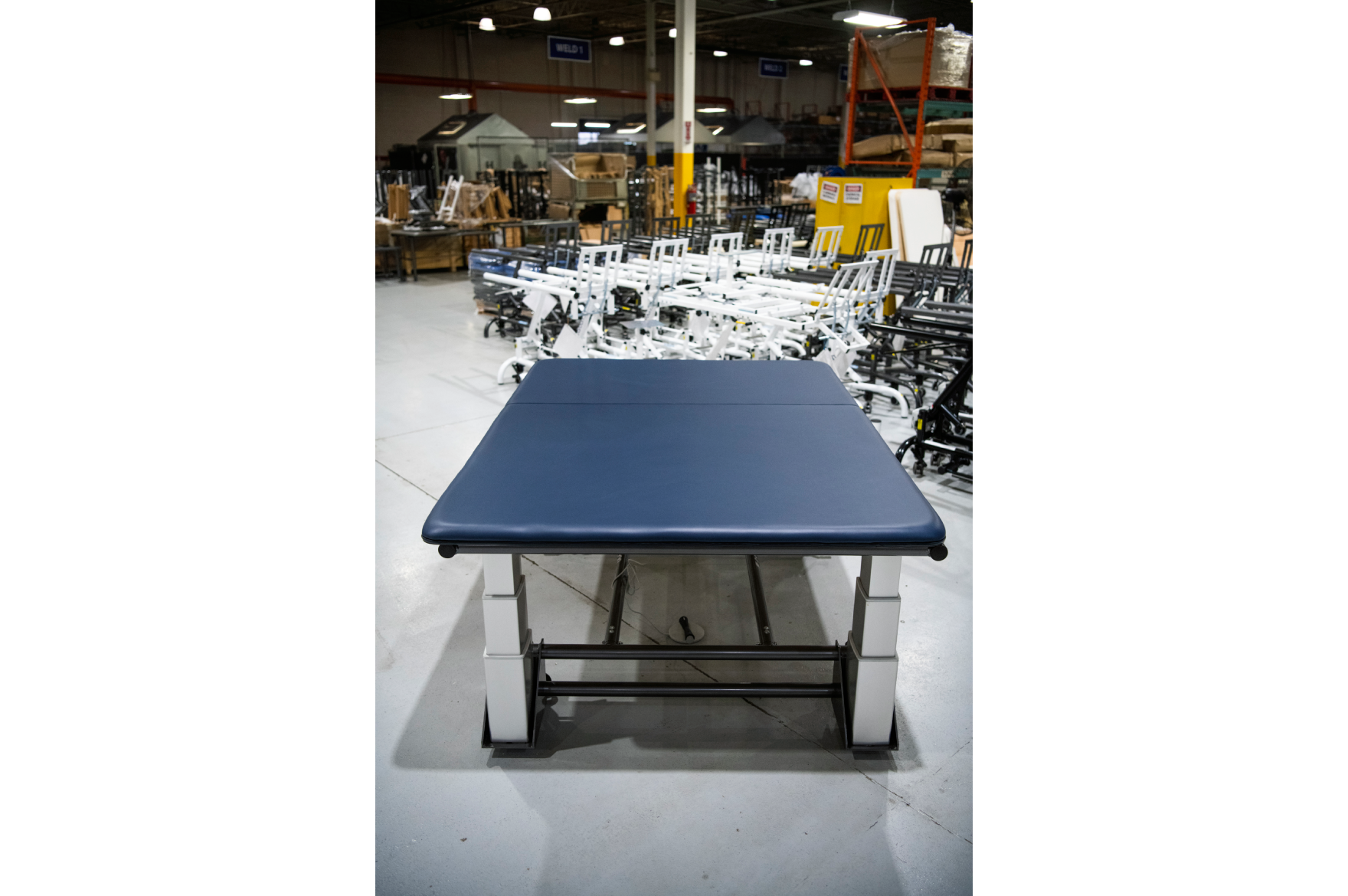

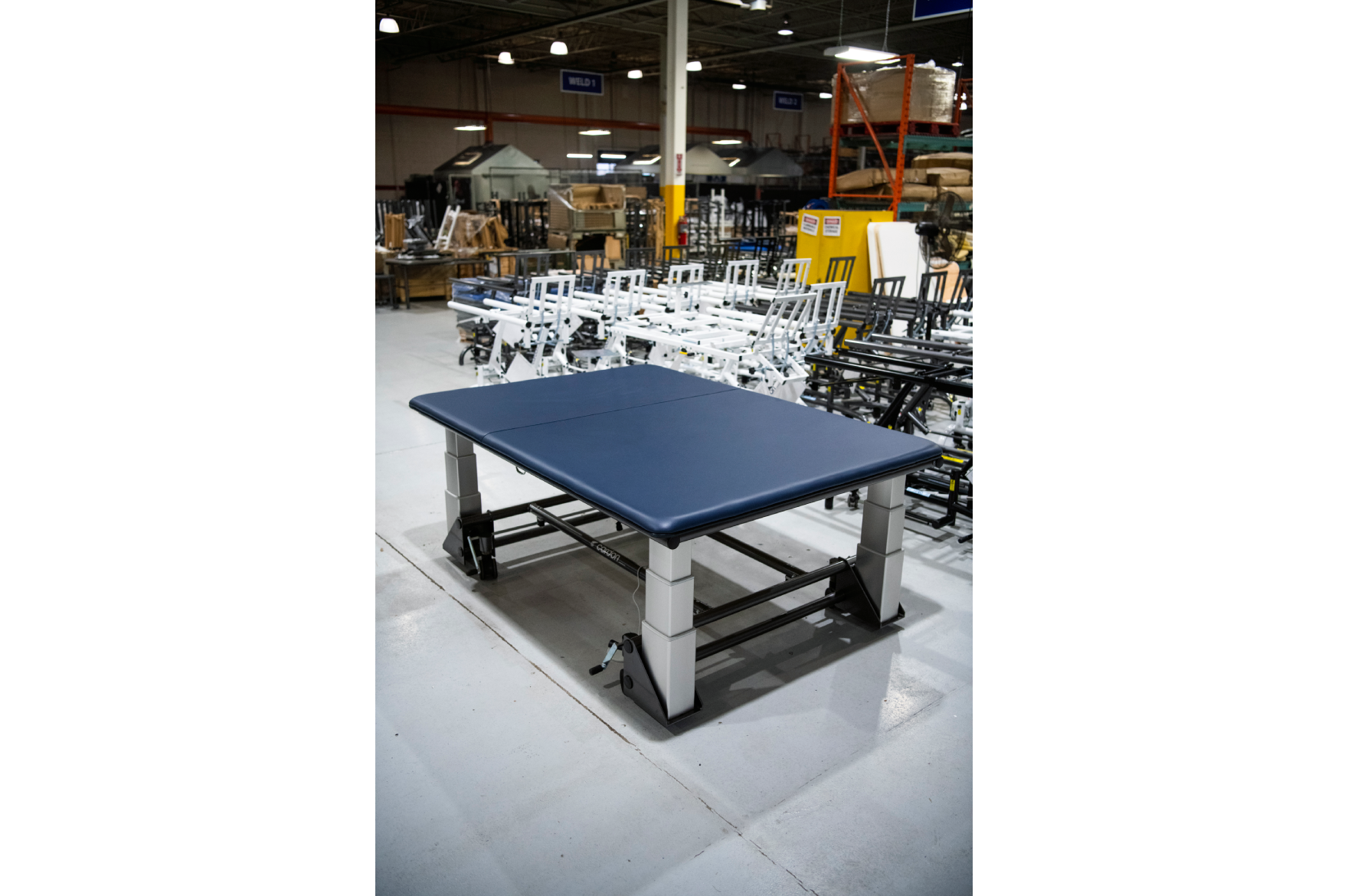

Cardon’s Hi-Lo Mats are constructed using a high strength seamless tubular frame with a protective powder coat finish in White or Gunmetal Grey.  They are equipped with four lifting columns, padded with 2.25” thick high quality foam, and upholstered with a seamless vinyl. The Hi-Lo Mats are available in 5’ x 7’ and 6’ x 8’ dimensions.

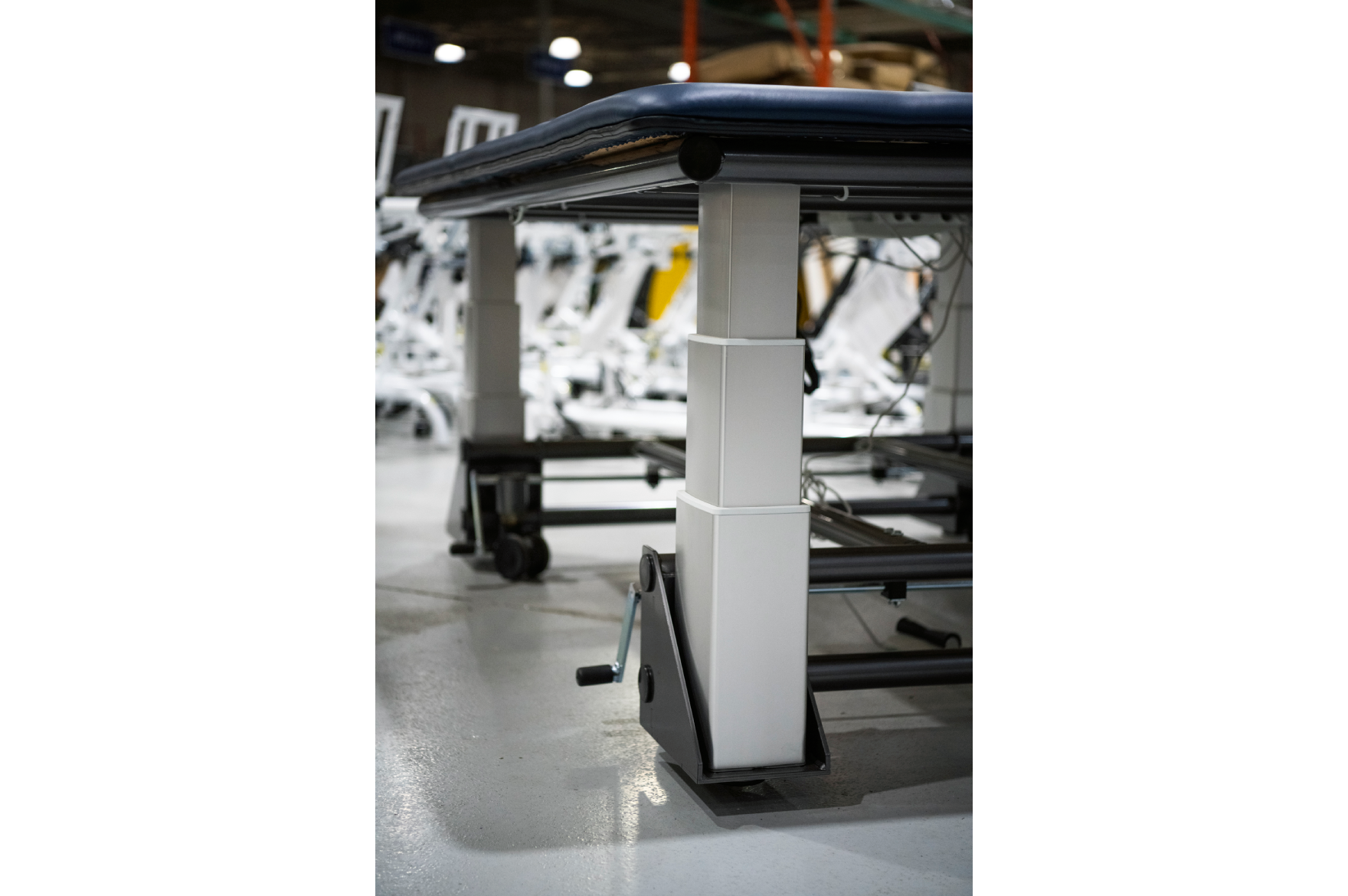

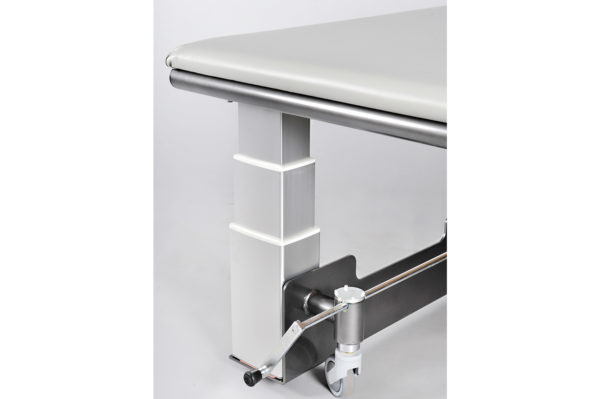

The four lifting columns provide superior stability allowing the patient and/or therapist to mount and dismount the table from all sides without hesitation.


Upholstery Colors

cardon treatment table upholstery colors



1 Section Table

Electric Hi-Lo ControlFoot Pedal and Hand Held Control

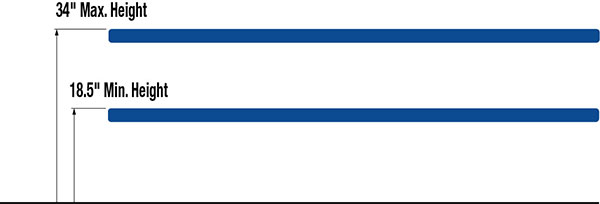

Height Adjustment18.5" - 34" (4 lifting columns for vertical raising and lowering)

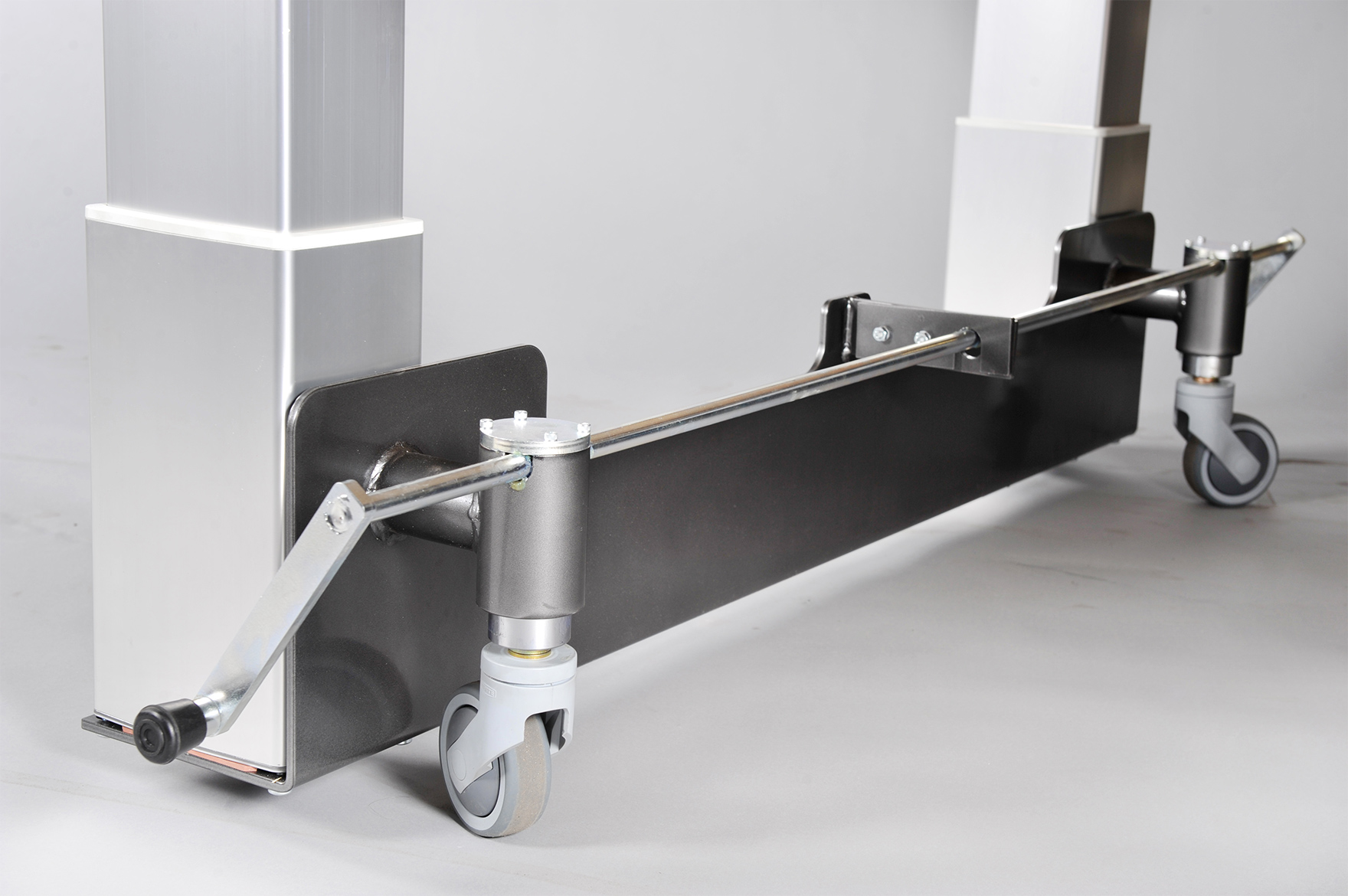

Caster SystemDual lever retractable (5" casters)
Frame ConstructionHigh strength seamless tubular frame
Frame ColorDurable powder coat in White or Gunmetal Grey
Upholstery Foam1.5" thick
Seamless Vinyl Upholstery5 Standard Color Options: White, Grey, Forest Green, Blue and Black

Hi-Lo Mat Drawings

Lifting Capacity1000 lbs.
DimensionsAvailable in:
5' x 7' (60" x 84")
6' x 8' (72" x 96")
Power Supply120 Volt AC 60 Hz. Max. 5.8 Amp.
Shipping Weight (5' x 7')725 lbs.
Shipping Weight (6' x 8')825 lbs.
Extra foot pedalR28548-1 - Extra foot pedal

Extra hand held controlR27130-1 - Extra hand held control

cardonlogo-noimage Antimicrobial Naugahyde Upholstery in over 80 color options

Download Specification Sheet
