Traction Treatment Table (TTT)

Choose Upholstery Colour…
  • Choose Upholstery Colour…
  • Adobe White US 394
  • Parchment US 385
  • Bone US 404
  • Taupe US 410
  • Alabaster US 396
  • Sand US 384
  • Bisque US 409
  • Putty US 403
  • Russet US 536
  • Doe US 519
  • Maple US 535
  • Camel US 387
  • Sun Yellow US 322
  • Golden Corn US 524
  • Orange Ochre US 534
  • Mandarin Orange US 372
  • Oak US 421
  • Cinnamon US 377
  • Terra Cotta US 376
  • Rosalee US504
  • Tomato US 358
  • American Beauty US 360
  • Cinnabar US 520
  • Dark Cherry US 507
  • Paprika US 370
  • Claret US 357
  • Dove US 413
  • Bronze US 523
  • British Tan US 365
  • Gingersnap US 369
  • Chestnut US 375
  • Mocha US 381
  • Espresso US 383
  • Sage US 526
  • Artichoke US 527
  • Olive Green US 529
  • Emerald US 343
  • Nebo US 533
  • Forest US 344
  • Yew Green US 530
  • Platinum US 531
  • Dusty Jade US 417
  • Grotto US 426
  • Greystone US 425
  • Gunmetal US 392
  • Graphite US 429
  • Black US 393
  • Fjord US 517
  • Wedgewood US 414
  • Capri Blue US 514
  • Space Blue US 353
  • Regimental Blue US 345
  • Blue Ridge US 427
  • Imperial Blue US 432
  • Admiral US 532
  • Sky Blue US 516
  • Royal US 354
  • Deep Violet US 511
  • Concord US 510
  • Burgundy US 364
Choose Base Colour…
  • Choose Base Colour…
  • Gunmetal Grey
  • White
  • Black

Download Specifications Sheet
Share this Page

Cardon Logo

Product Features

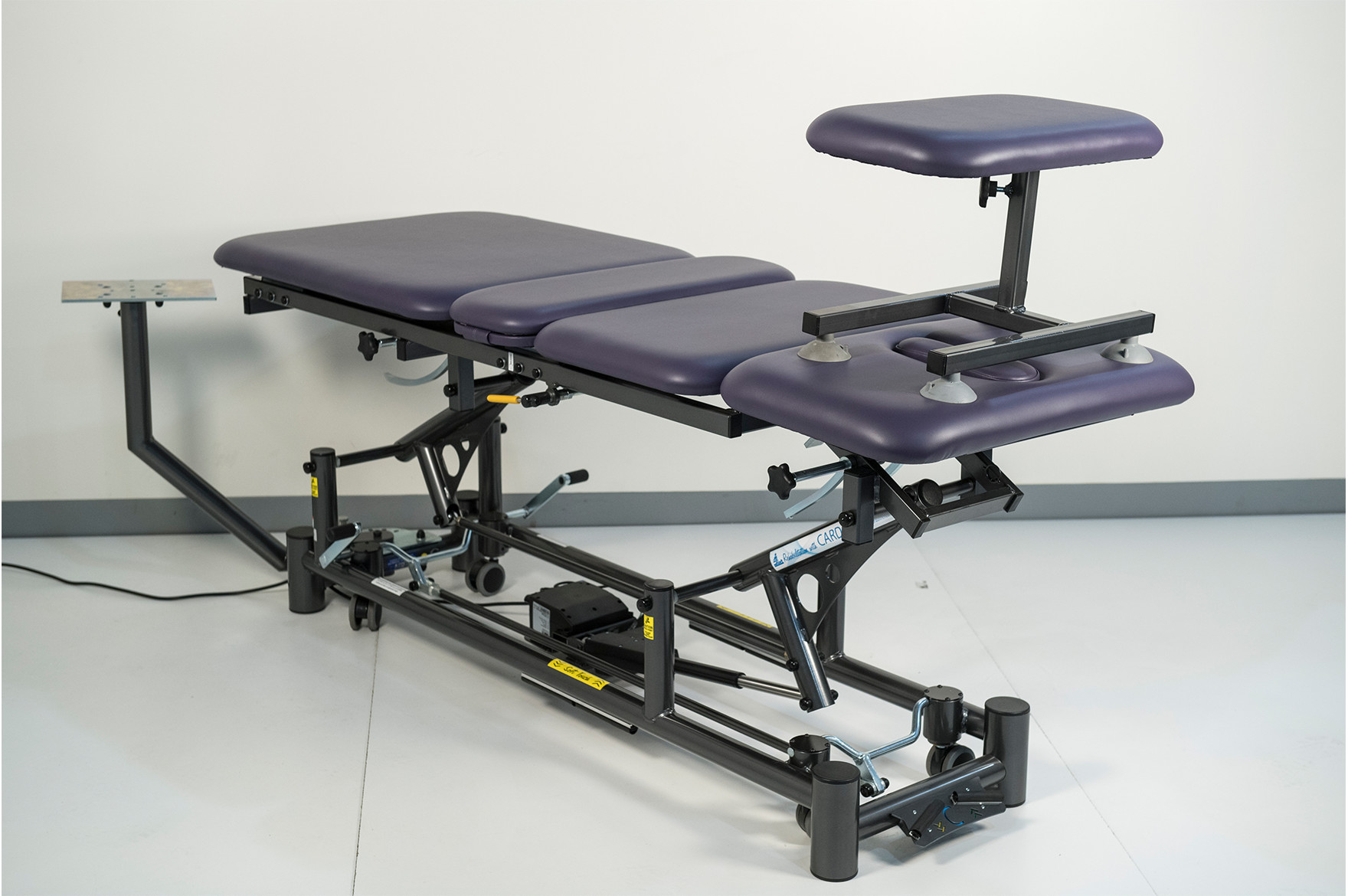

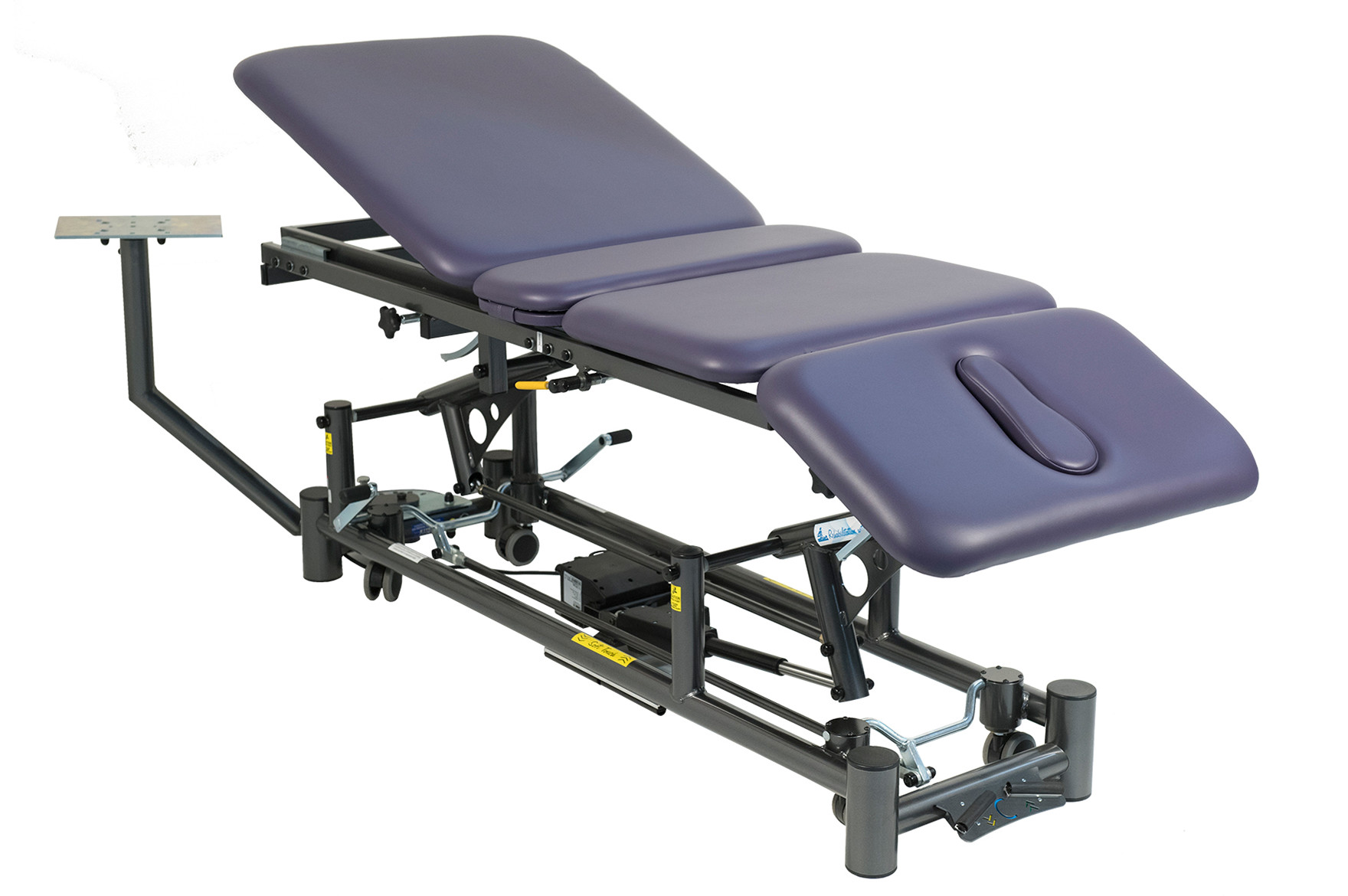

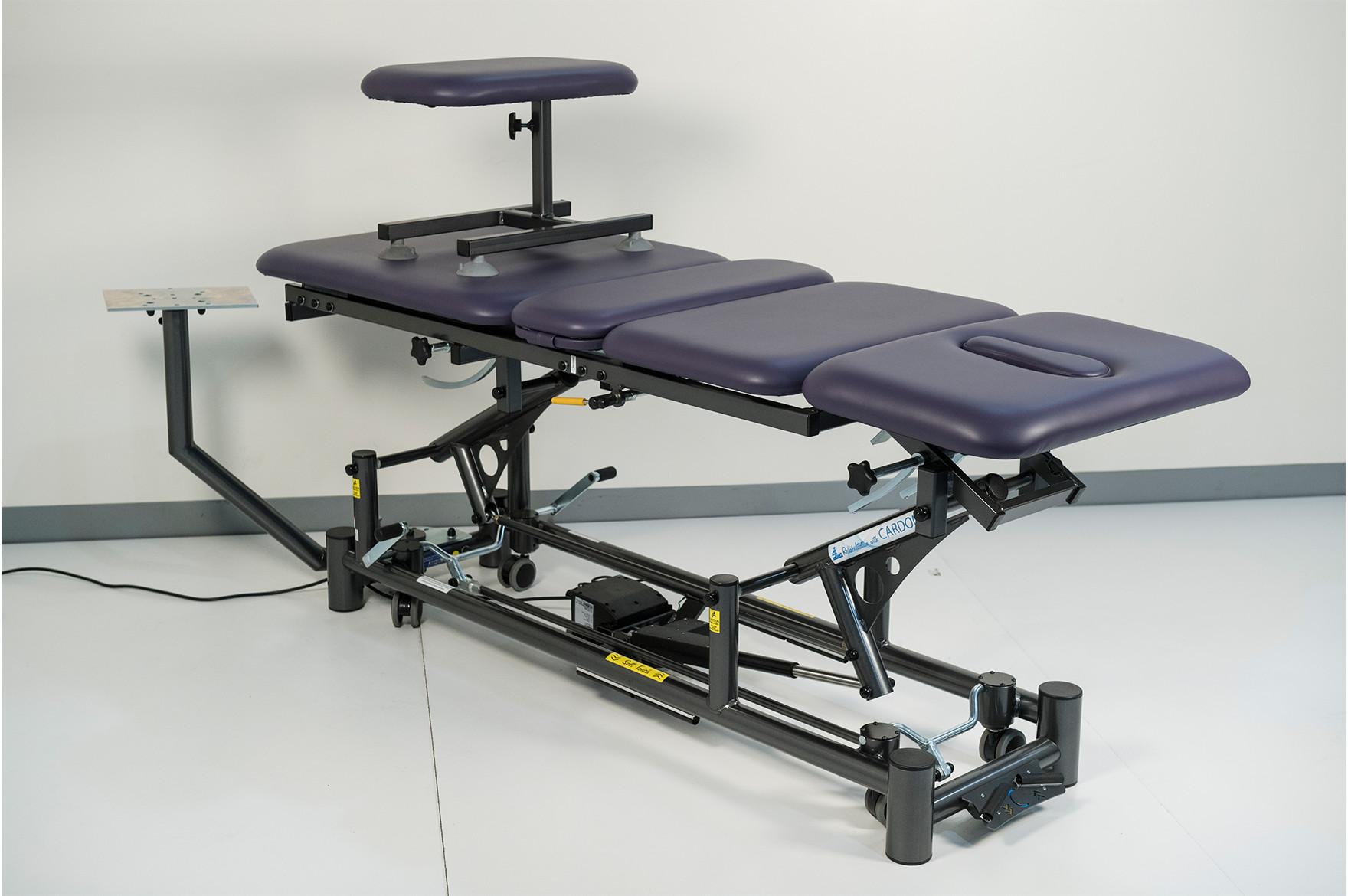

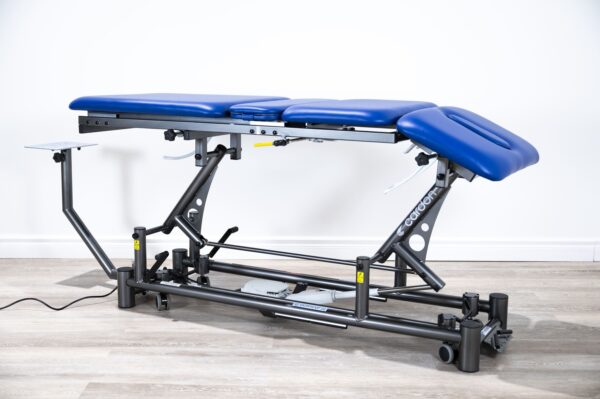

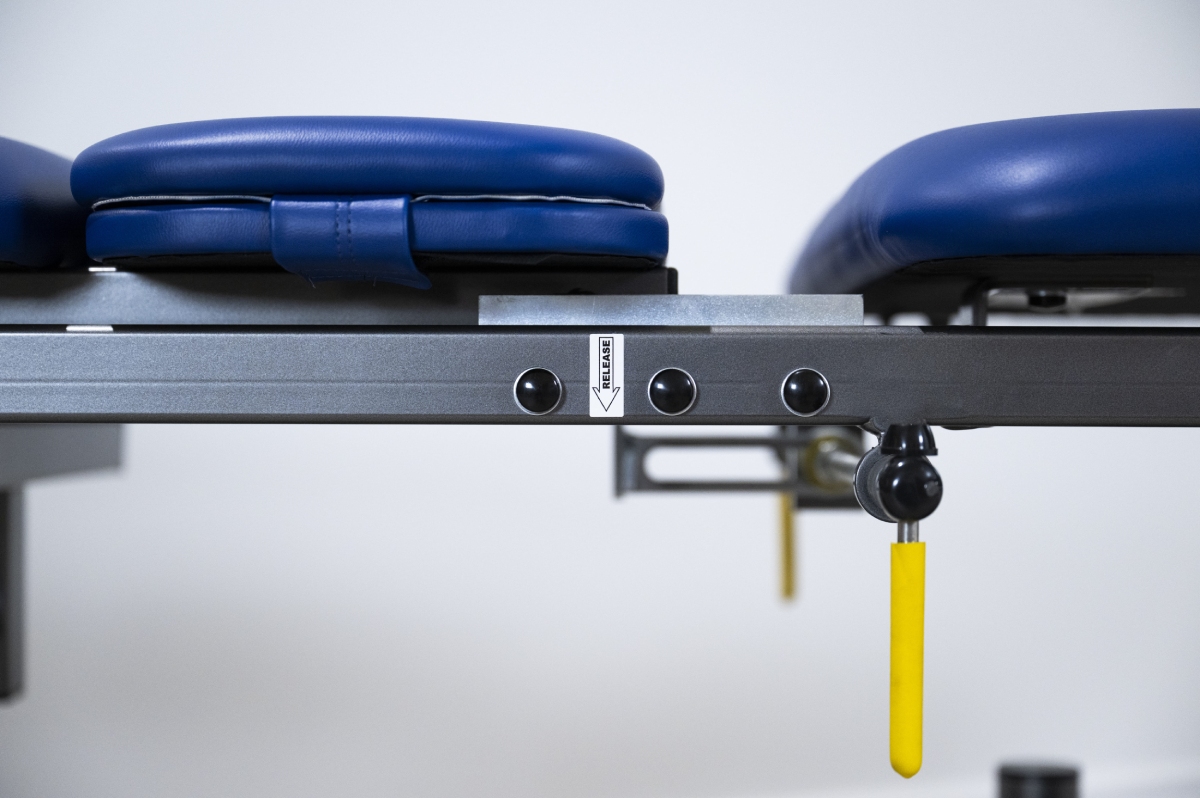

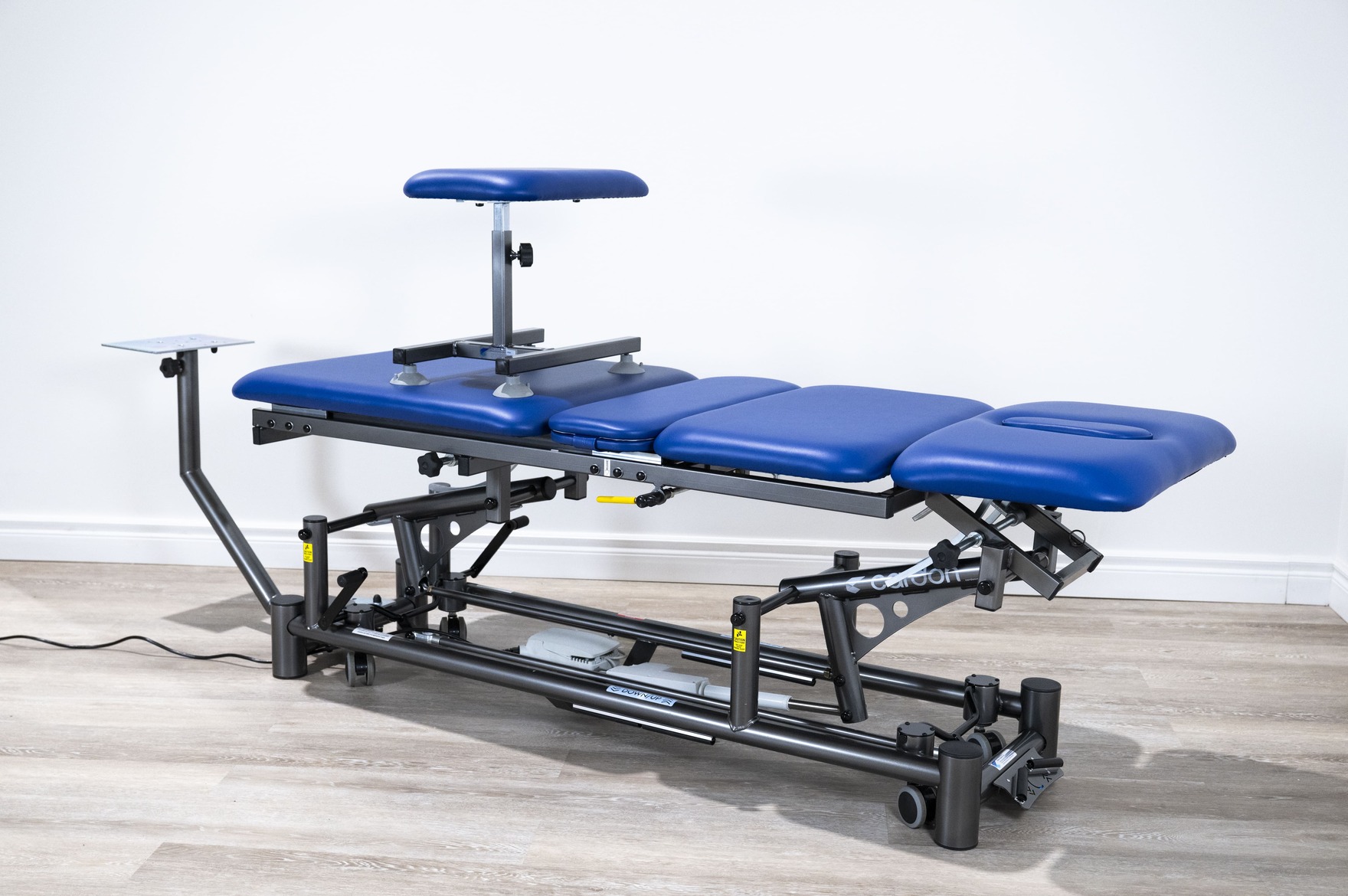

The Traction Treatment Table is a four section table featuring an adjustable head and leg section with a fixed center section. This table adjusts to multiple positions permitting patient positioning in the most effective position. The head section lowers 30 degrees and rises to 90 degrees; the leg section raises 80 degrees. The friction free rolling leg section allows for effective lumbar sacral traction with a release lock mechanism, allowing the rolling section to be locked from either side in any position. The traction mounting board which can be tailored to any traction unit adjusts 145 degrees to either side of the table. The removable pad allows for moist heat application.

Traction machine not included.

Soft Touch Technology

Cardon’s patented Soft Touch Footswitch has been strategically positioned on the base of your treatment table. Minimal amount of pressure applied by your foot will raise and lower the table with ease.

4 Section Table
Electric Hi-Lo Control Soft Touch Footswitch

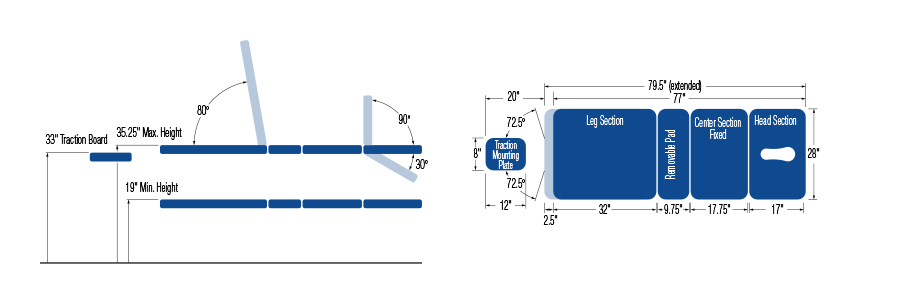

Hi-Lo Adjustment 19” – 35.25”
Face Cut-Out on Head Section Keyhole cut-out with filler
Head Section Adjustment Positive locking system with dual head support

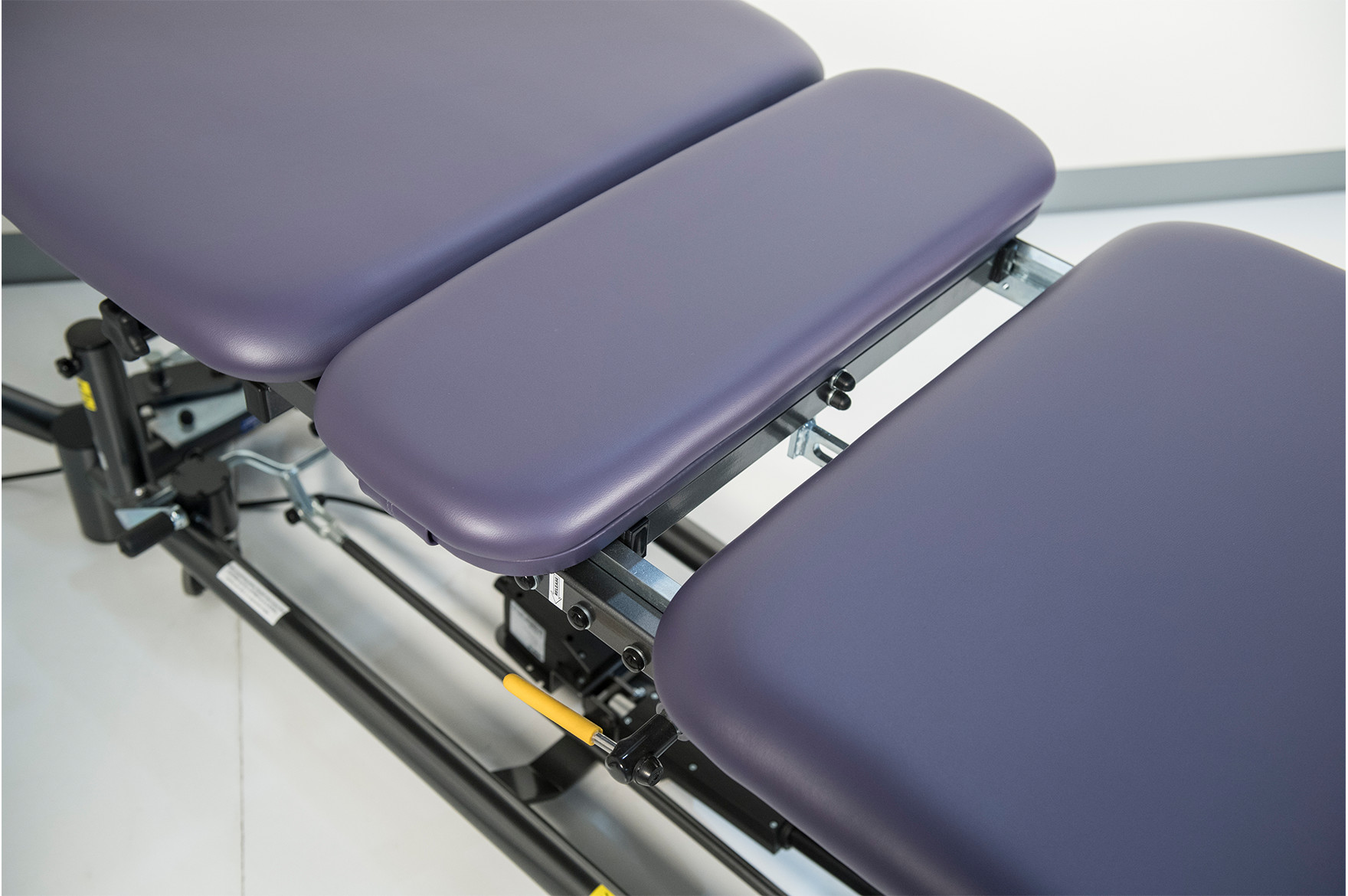

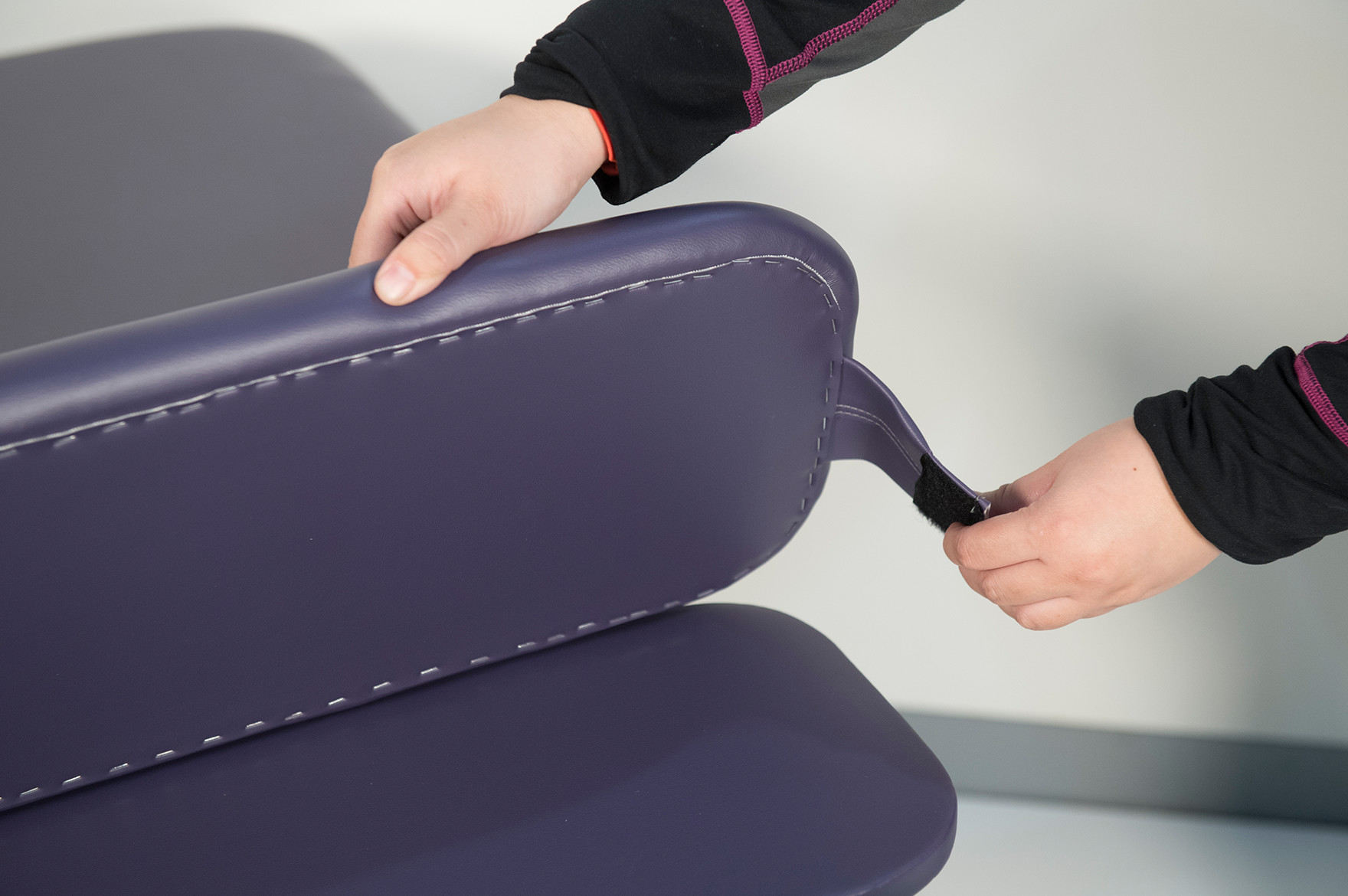

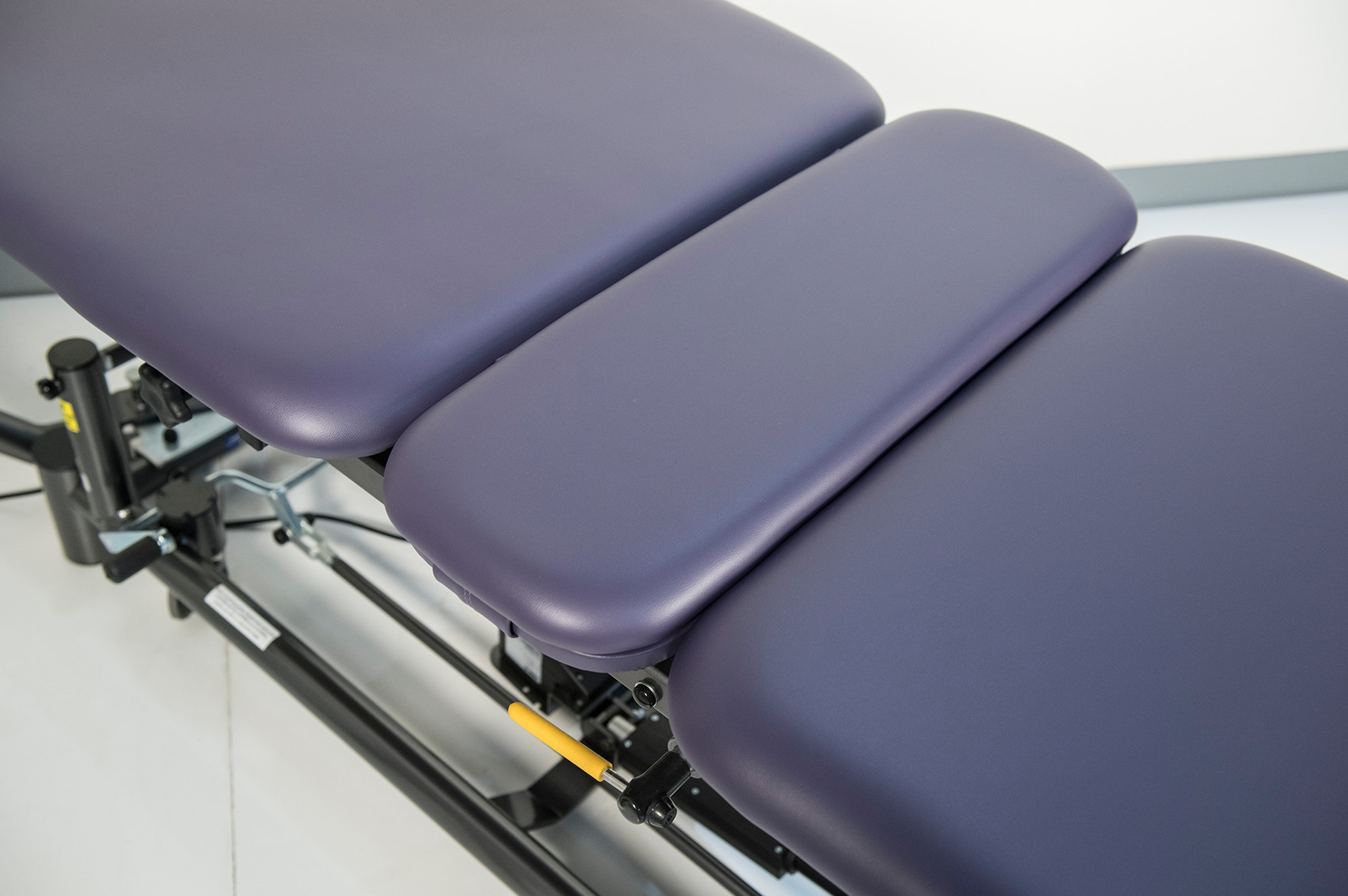

Center Sections (2) 1 - Removable pad
1 - Fixed
Leg Section Adjustment Positive locking system

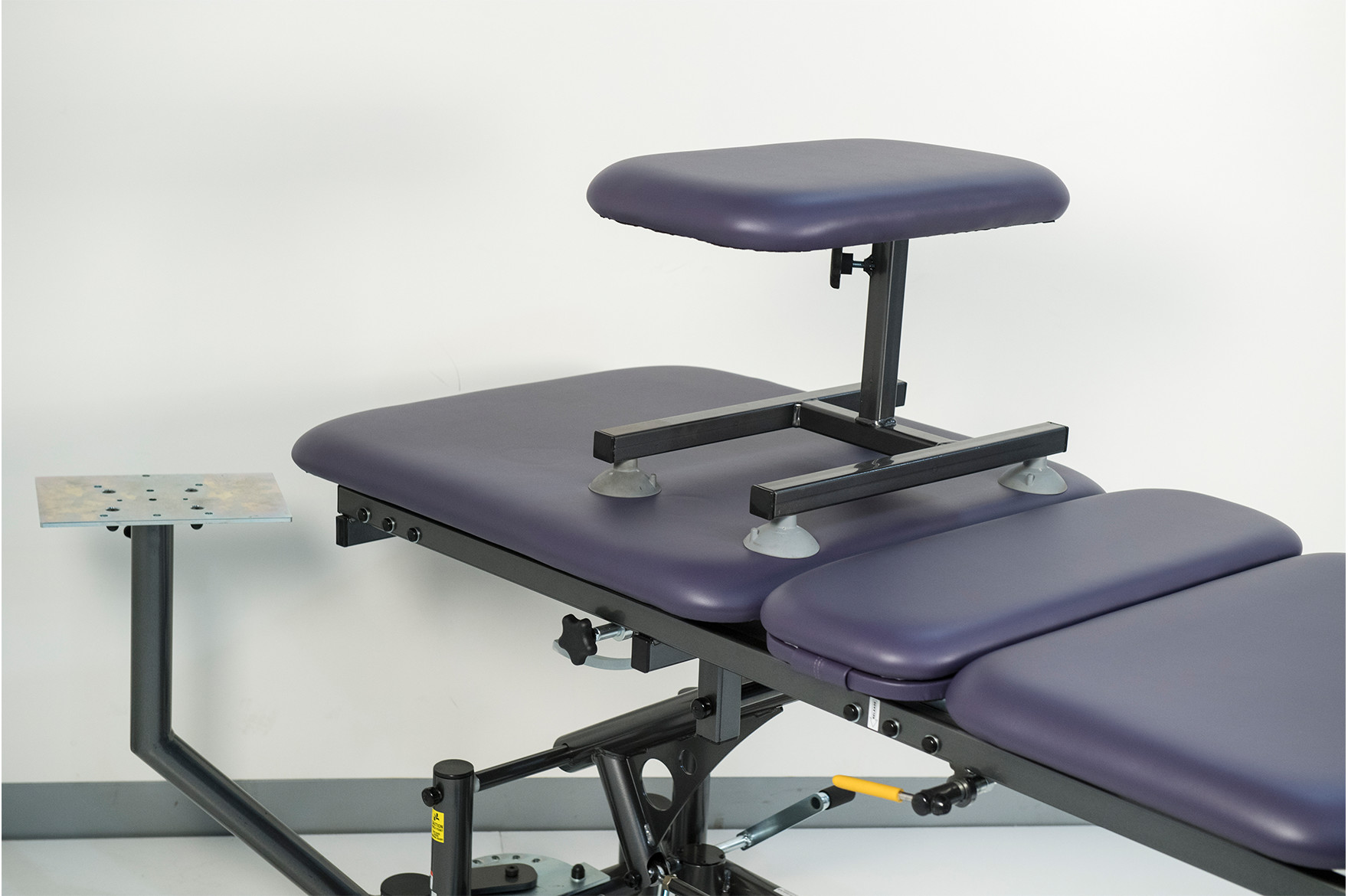

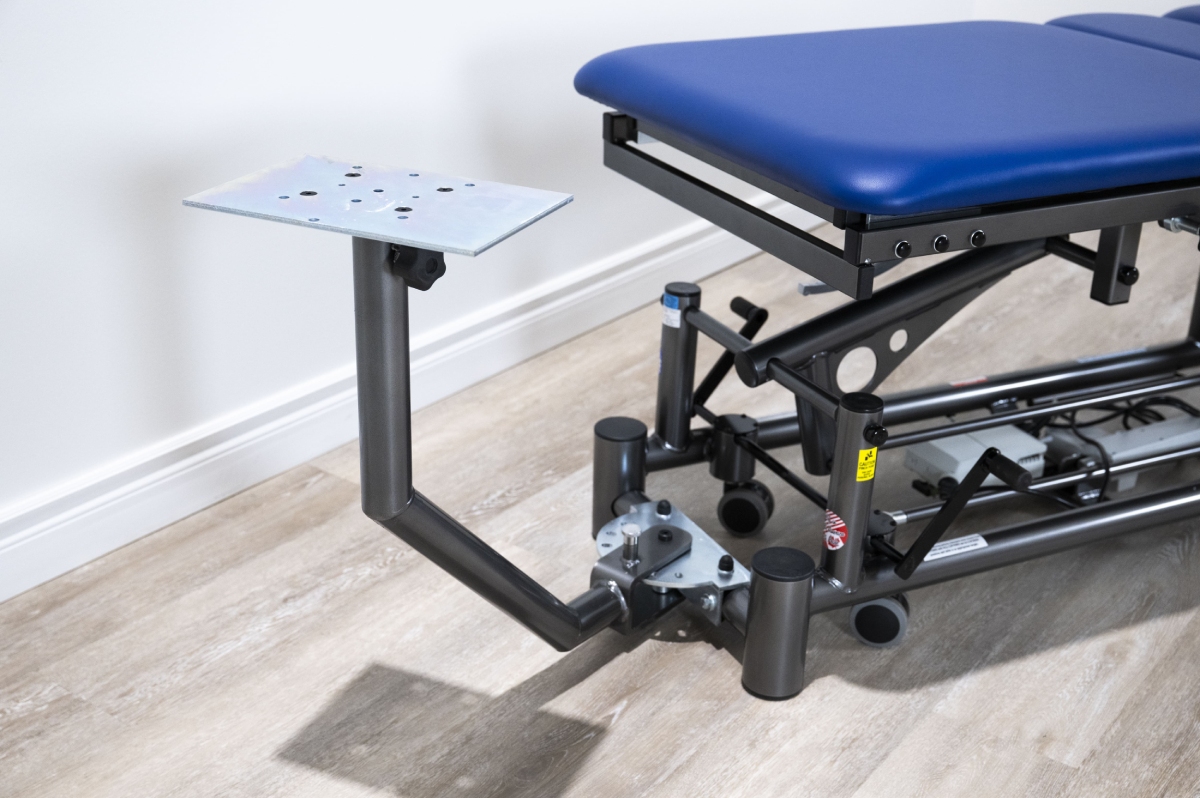

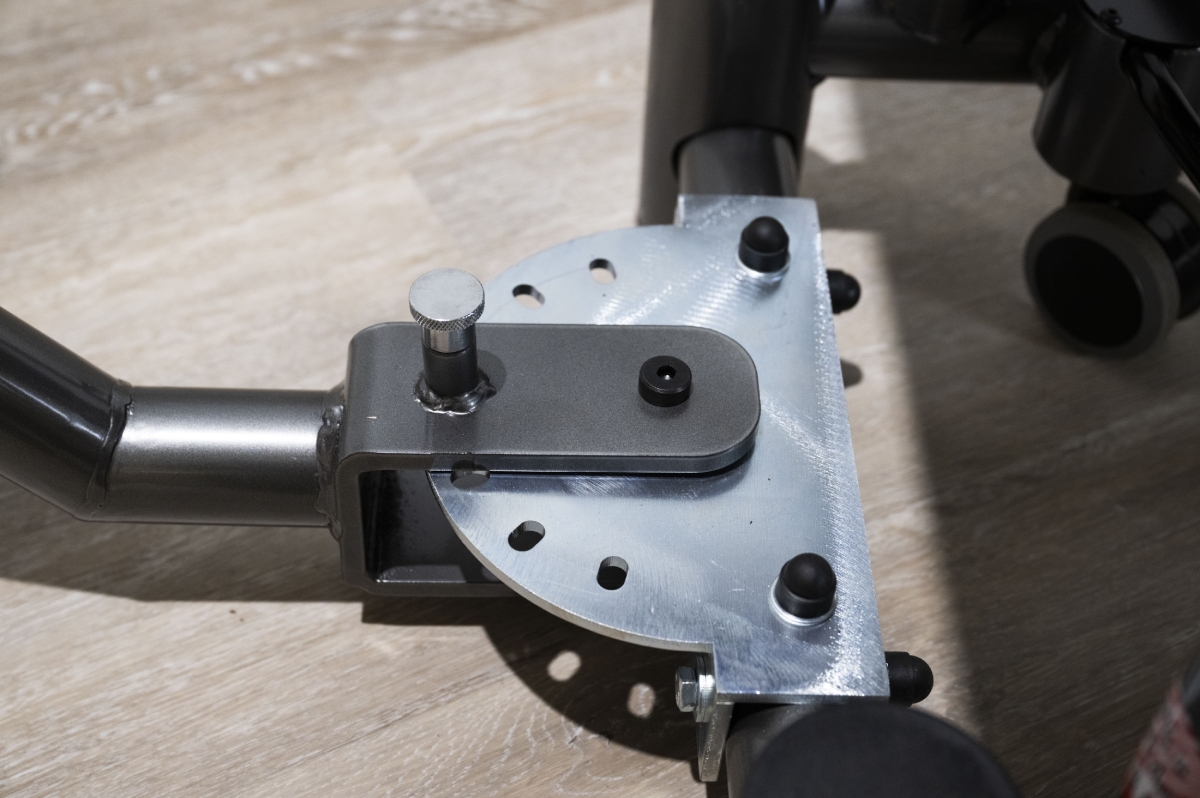

Traction Mounting Board

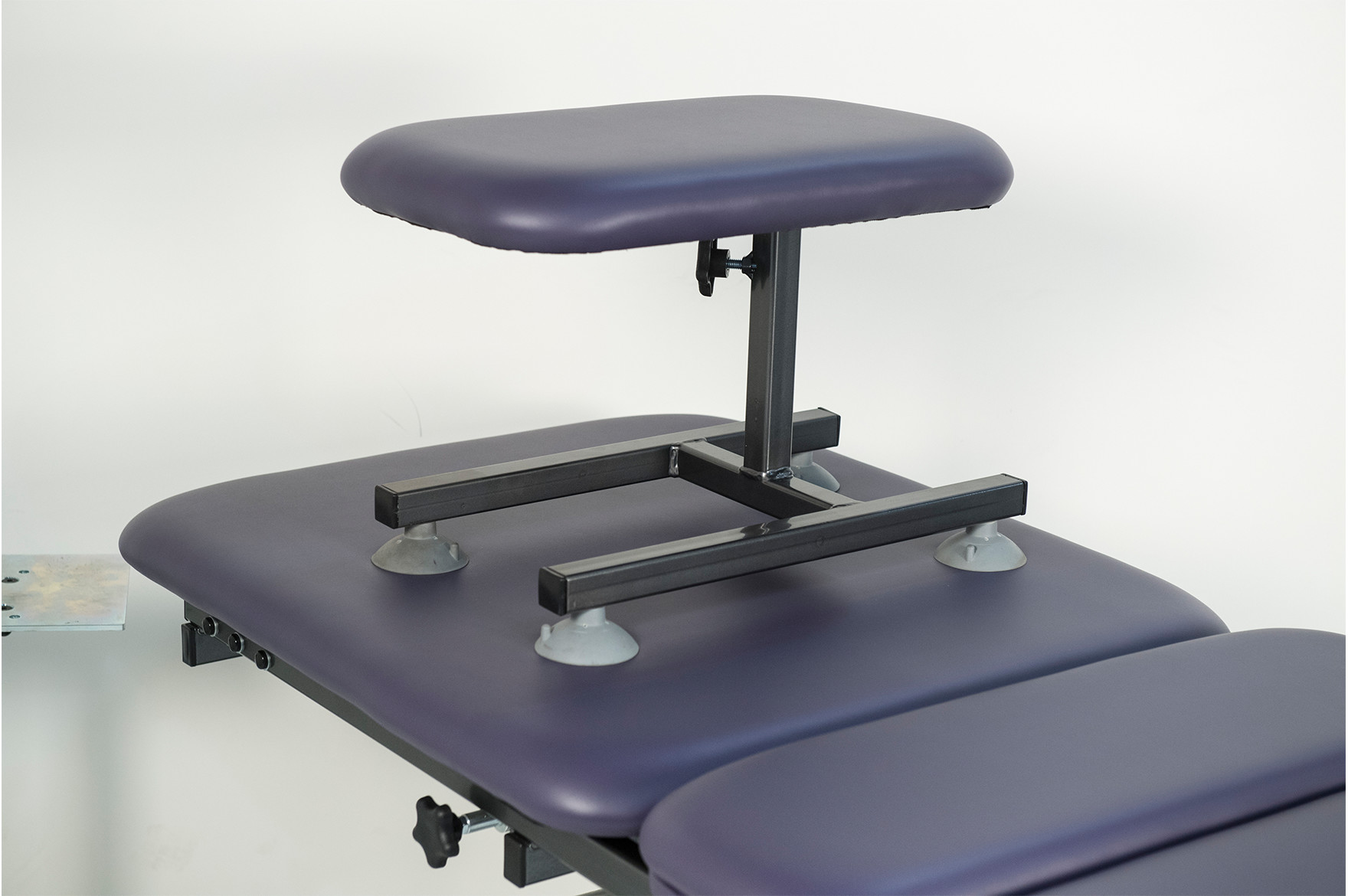

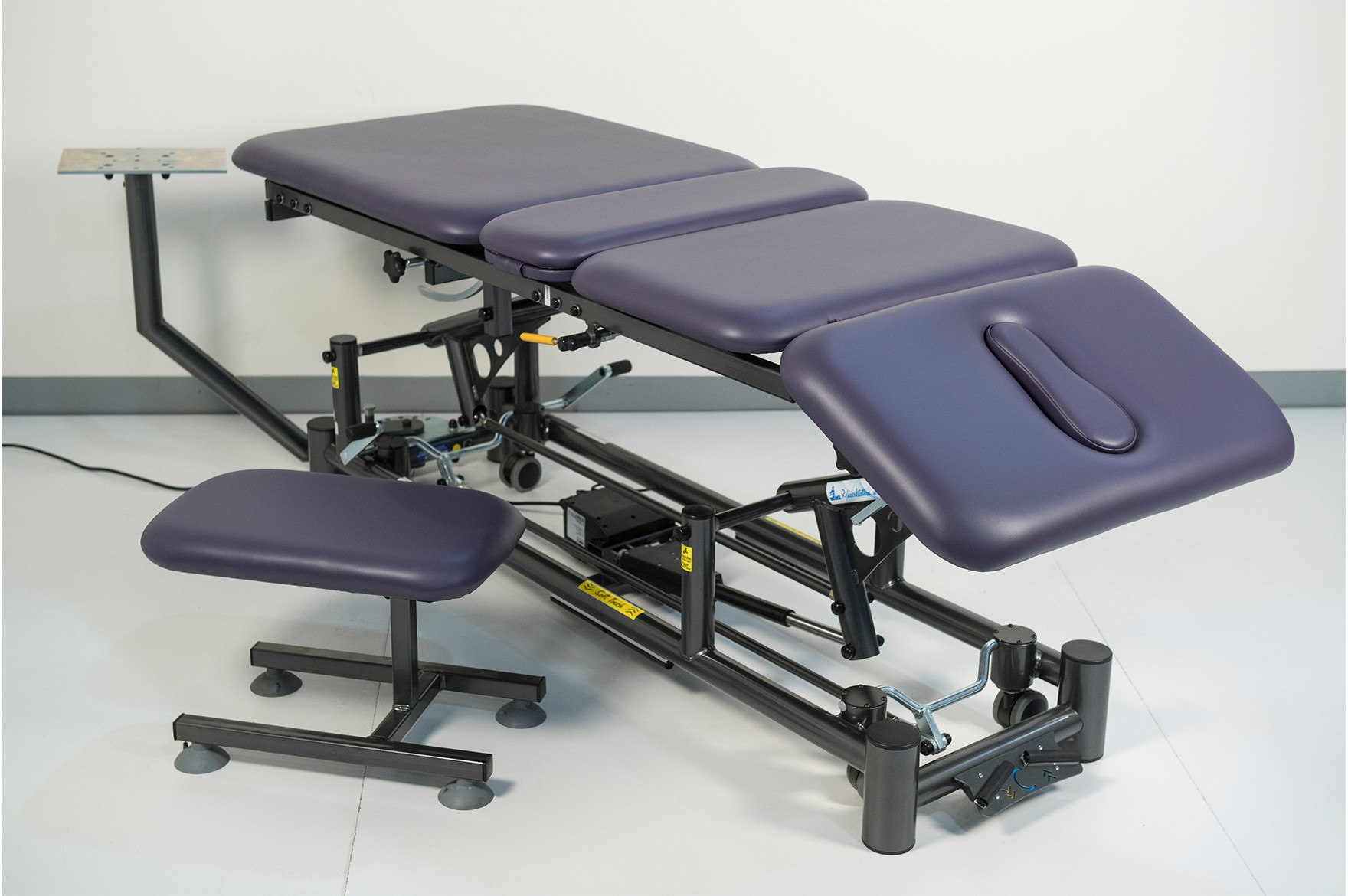

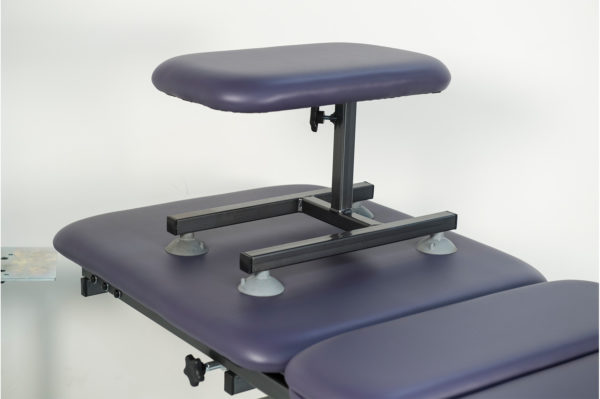

R40198 – Adjustable Flexion Stool
Caster System Single lever retractable (4” casters)
Frame Construction High strength seamless tubular frame
Frame Color Durable powder coat in Gunmetal Grey or White
Upholstery Foam 1.5” thick
Antimicrobial Naugahyde Upholstery Over 60 upholstery color options
Weight Capacity 500 lbs.
Dimensions 28” x 77”
Power Supply 120 Volt AC 60Hz. Max. 2.5 Amp.
Fire Retardant Upholstery

Custom Foam Upgrade

Examination paper holder

Foot pedal

Extra foot pedal

Osteopathic head section

Optional head section with variable position armrests (3-piece)

Vinyl Pillow Covers

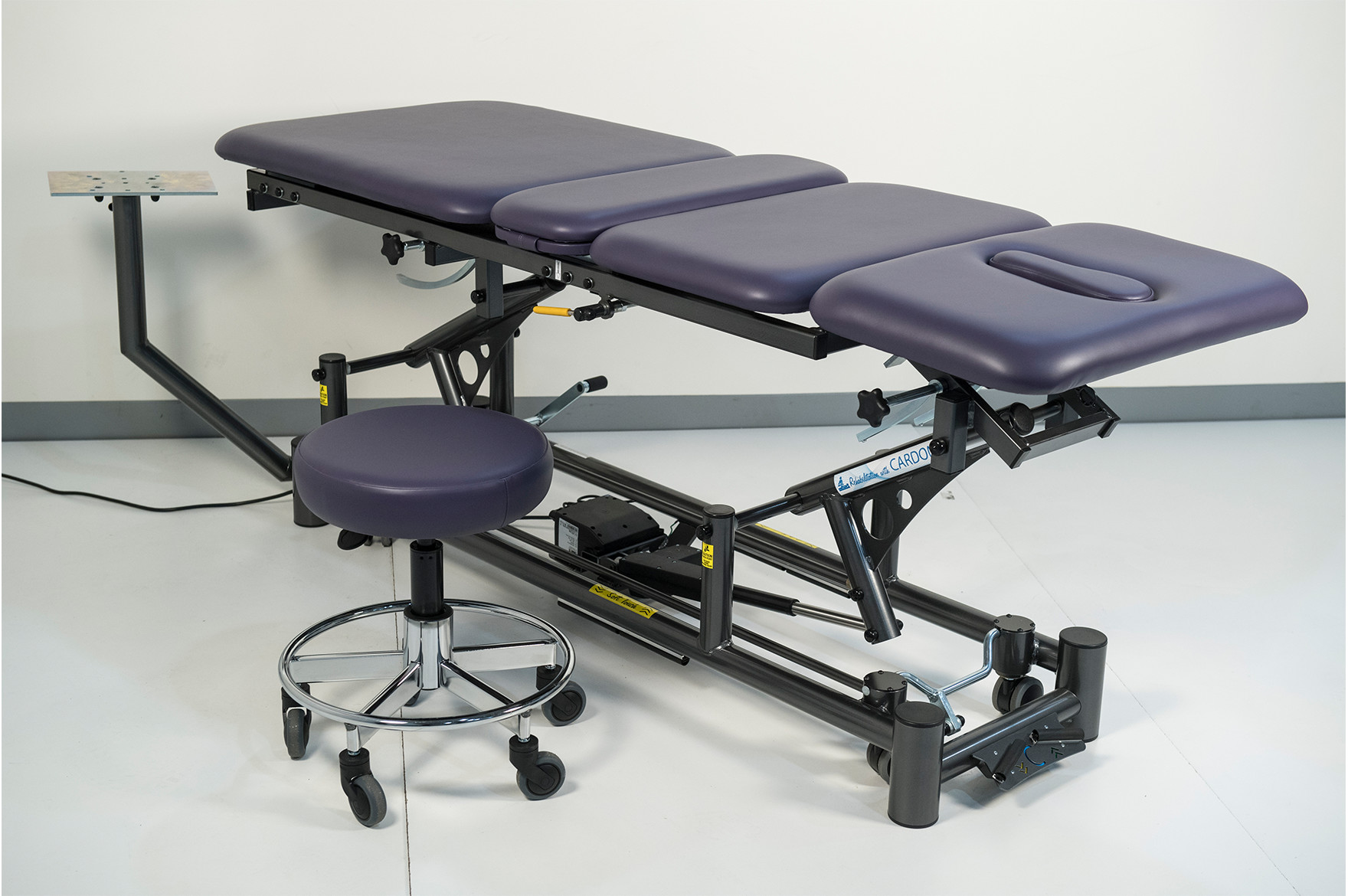

All-Purpose Hi-Lo Stool

Cardon’s Lifetime Warranty

Our products are made with the highest quality materials and craftsmanship, that exceed your expectations in terms of performance, durability, and longevity. We use a unique high grade seamless steel tubing, that is designed for manufacturing automotive safety components. In combination with significant design enhancements, and the latest manufacturing technology we are confident in our upgraded lifetime warranty on frame offer.
